Product Description
Steel structure building is widely used as workshop, warehouse, factory, hotel, apartment, church, office, bridge, hospital, garage, poultry house etc. It is durable, economic and environmental-friendly.
| Beam | H-Section Steel Q235B, Q345B |
| Purlin | Zinc Plating Steel Plate |
| Column | Hot Rolled Steel(HRS), Steel Plate |
| Base | Foundation bolts (Q235B) |
| Surface | Zinc Plating, Paint |
| Surface Color | According to Your Request |
| Rain spout | PVC |
| Plywood | Glass Wool, Polyurethane, Rock Wool, EPS |
| Connecting | High-strength bolts, Plain bolts |
Our service:
We can offer one stop service for the customer from designing, manufacturing, to testing, installation. All the steel structure building can be fabricated customized according to customers' requirement. | Drawings & Quotation Information: |
| 1) Customized design is welcomed. |
| 2) Could you tell me your steel structure project? |
| Basic design requirements and design Load |
| 1. Project site location: |
| 2.Overall dimension(length*width*eave height in meters): |
| 3. Mezzanine or not?How many kgs of load per square meter on mezzanine? |
| 4. Single-layer steel sheet wall or sandwich panel wall: |
| 5. Snow load if applicable: |
| 6. Wind speed/load: |
| 7. Interior column allowed or not: |
| 8. Overhead crane needed or not, capacity?: |
| 9. Any other particular requirements?: |
| Building Purpose: we will recommend the best design for the purpose of the building |
| A.Warehouse/Storage |
| B.Factory |
| C.Agriculture Barn |
| E.Repair/Mechanic Shop |
| F.Office Space |
| G.Medical Warehouse |
| H.Animal Farm (please confirm what kind of animal) |
How to establish a steel structure warehouse? Here is a simple step for your reference.

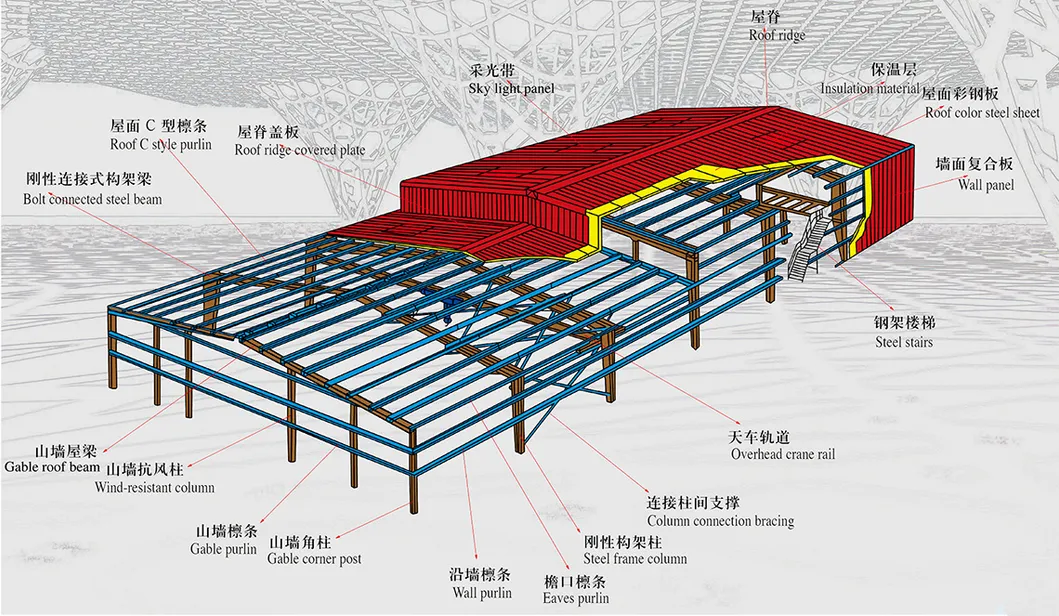

Prefabricated Steel Structure Industrial Warehouse

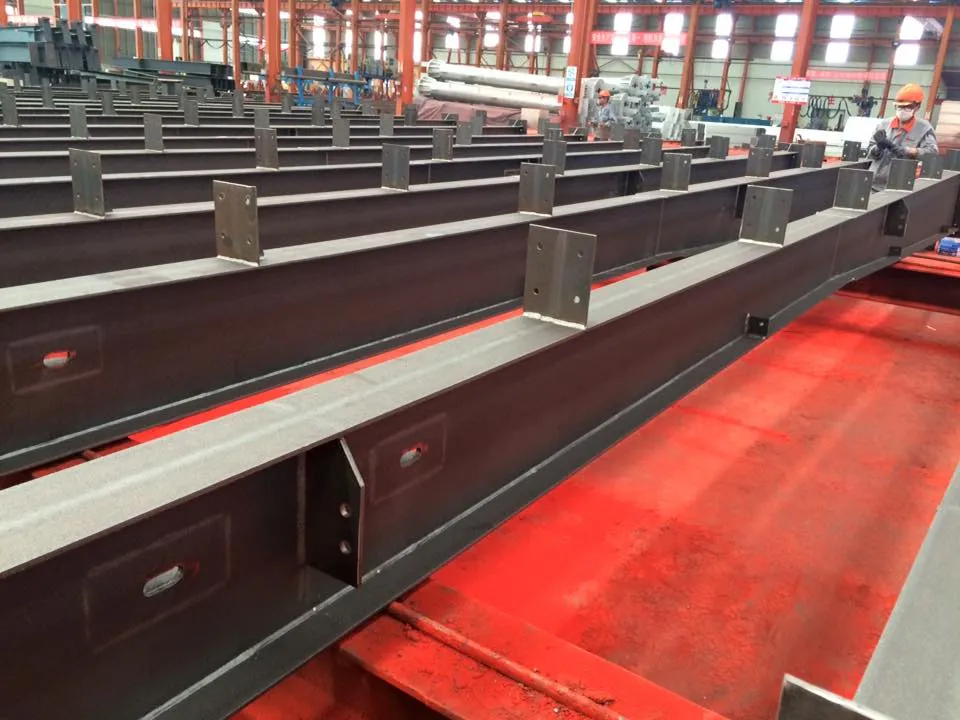

1. Steel Framework: H section steel as columns and beams; C purlins or Z purlins and supporting parts
Surface Treatment of Steel Framwork: Painted or Galvanized
2. Roof Cladding: Corrugated Steel Sheet/ Insulated Steel Sandwich Panel
3. Wall Cladding: Corrugated Steel Sheet/Insulated Steel Sandwich Panel
4. Door: Sliding Door with Canopy/Rolling Door
5. Window: PVC Window/Aluminium-alloy Window
6. Overheaded Crane Option: Single-girder & Double-girder, weight range is from 1 ton to 30 ton
7. Other Options: Roof Ventilation, Transparent Roof Sheet, Gutter and Downpipe, etc
More details, pls contact us directly
Modernized Standard Workshop
1) Different sizes:
MOQ is 200m2, width X length X eave height.
2) Different types:
Single slope;
Double slope;
Sing span;
Double-span;
Multi-span;
Single floor, double floors.
3) Different Bases:
Cement and steel foundation bolts.
4) Different Columns and Beams:
Material Q345(S355JR)or Q235(S235JR) steel, all bolt connections, Straight cross-section or Variable cross-section.
5) Different bracings:
X-type or V-type or other type bracing made from angle, round pipe, etc.
6) Different Purlins:
C or z type: Size from C120~C320, Z100~Z200.
7) Different Roof and Wall Panel:
Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, rock wool, glass wool, PU etc insulation thickness around 50mm~150mm.
8) All accessories:
Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc.
9) Surface:
Two lays of Anti-Rust Paint or galvanized
10) Packing:
Main steel frame load in 40'FT, it is also can package into pallet, roof and wall panel load in 40'HQ.
You ONLY need you to provide us with the following information:
Demand and will be professional advice according to our experience.
Design Parameters you should provide us in advance:
1) Live load on roof (KN/M2);
2) Wind speed (KM/H);
3) Snow load (KG/M2) - If Applicable;
4) Earthquake load - If Applicable;
5) Style of Doors and Windows;
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure;
7) Size: Width X length X eave height, roof slope;
8) Or your idea!
